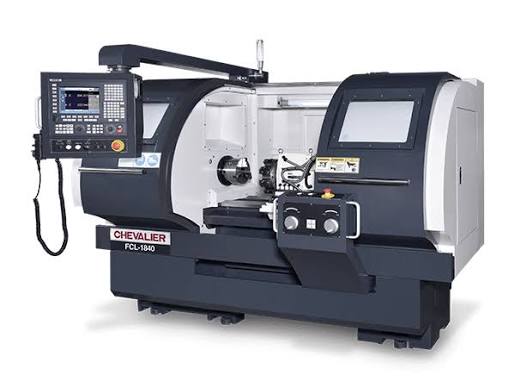

A CNC (Computer Numerical Control) lathe is an automated machine tool that spins a raw material block against stationary cutting tools to fabricate precise, cylindrical parts. Unlike a CNC Mill—which moves a spinning cutting tool around a stationary block—a lathe rotates the workpiece itself. This design makes it the ultimate system for creating symmetrical, rotational objects like shafts, threads, pistons, and knobs.
Core Components of a CNC Lathe
- Headstock & Spindle: Houses the high-torque main motor that securely holds and spins the raw material.
- Chuck / Collet: The physical clamp attached to the spindle that tightly grips the workpiece.
- Tool Turret / Post: A motorized indexable indexing platform that stores multiple cutting tools and swaps them rapidly.
- Bed & Carriage: The heavy, rigid cast-iron base that provides a track for the tool carriage to slide precisely along the axes.
- Tailstock: An adjustable support at the opposite end of the spindle used to steady long or slender workpieces.
- CNC Control Panel: The computer interface (like Fanuc, Siemens, or Haas NexGen) that executes pre-programmed software files
