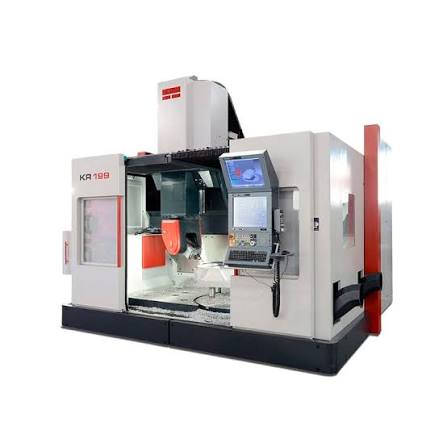

A 6-axis CNC machine is an advanced manufacturing system that adds three rotational axes to the three traditional linear axes (X, Y, and Z). By allowing the cutting tool or workpiece to rotate simultaneously from any direction, it eliminates the need to manually reposition material, enabling the fabrication of highly intricate, organic shapes with extreme precision.
A 6-axis machine manipulates a part or tool using six distinct degrees of freedom:
- X, Y, and Z Axes: The three foundational linear directions (left/right, front/back, up/down).
- A-Axis: Rotates around the X-axis (tilting forward or backward).
- B-Axis: Rotates around the Y-axis (tilting left or right)
- C-Axis: Rotates around the Z-axis (spinning horizontally)
Key Advantages over 3, 4, or 5-Axis Systems
- Single-Setup Manufacturing: Complex components can be machined from all sides in one single operation, reducing human error and boosting efficiency.
- Complex Geometry Support: Easily creates steep undercuts, deep internal cavities, curved channels, and intricate aerospace turbine blades.
- Superior Surface Finishes: The machine dynamically adjusts the angle of the cutting tool to maintain the absolute optimal tool-to-part orientation, reducing tool wear and chatter marks.
- Massive Setup Time Reduction: Eliminates the need to design and build custom holding fixtures for secondary setups
